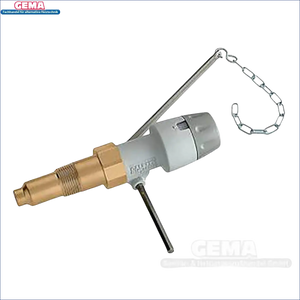

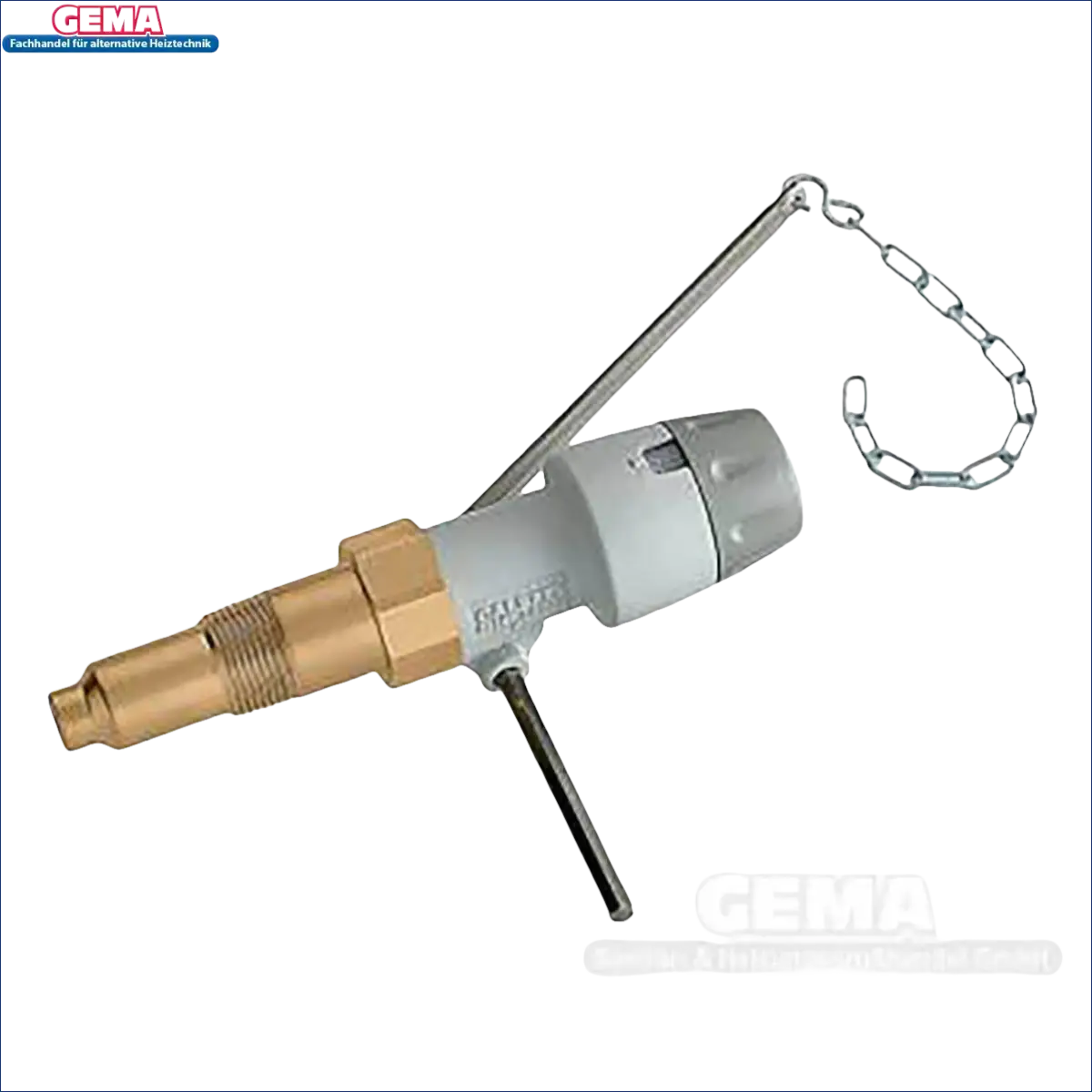

Caleffi Feuerzugler for solid fuel boilers
Fire control for solid fuel boilers
Caleffi draught regulator regulates the air supply for combustion

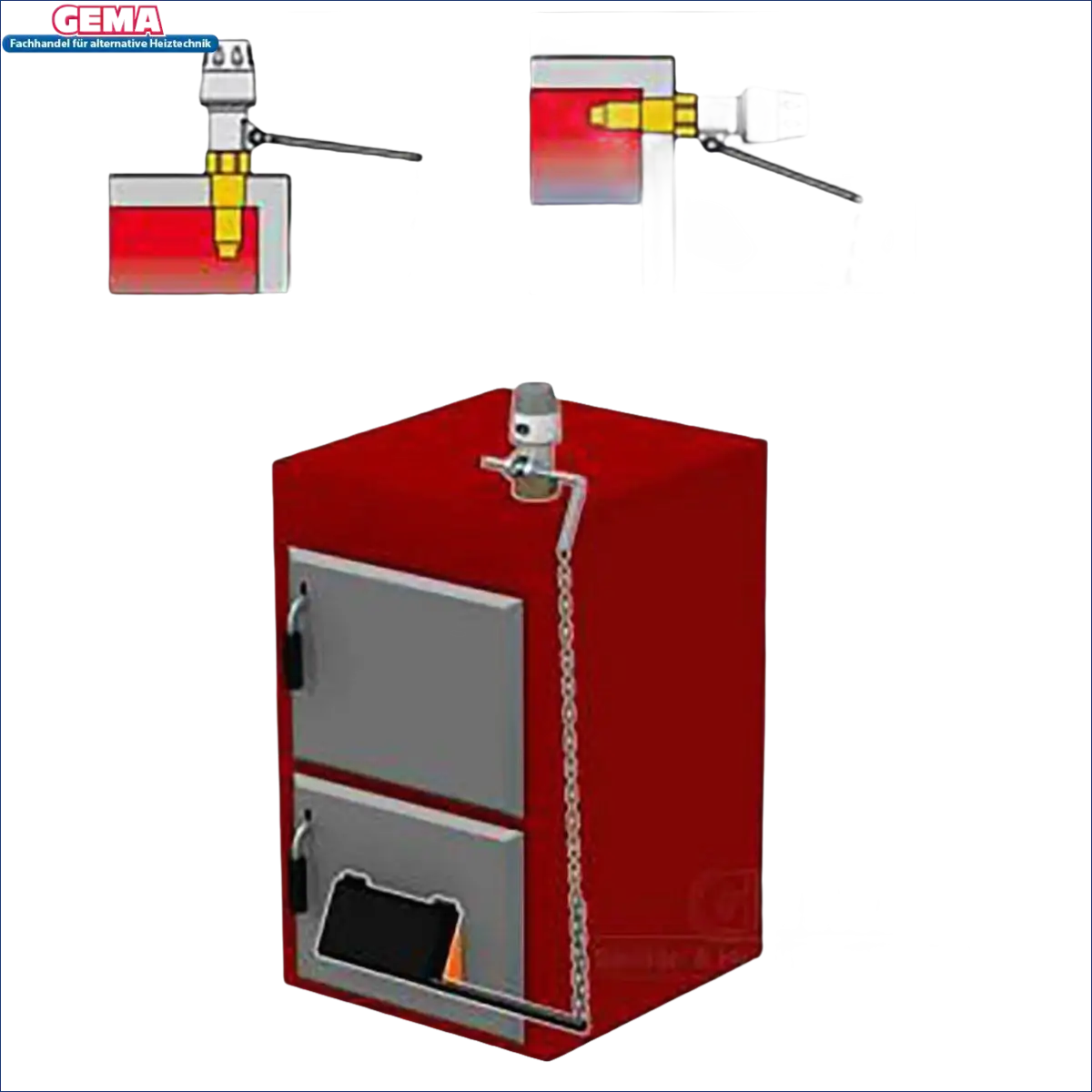

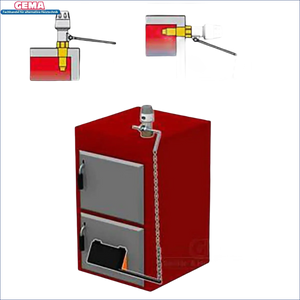

The temperature in the heat generator is measured by an integrated thermostat. The thermostat is connected to the supply air damper via a lever rod and a chain. Depending on the boiler flow temperature, the air supply is regulated by opening or closing the supply air damper. For temperature-dependent adjustment of the supply air damper on solid fuel and variable-fuel boilers.
Technical data: Fire regulator for solid fuel boilers
- Medium Max. 120°C
- Maximum load on the chain 10N
- Maximum operating pressure 10 bar
- Operating media: water, glycol solution up to 50%
- Setting range 30-90°C
- Connection ¾" AG
- Immersion tube length 58mm
- Chain length 1200mm
- Installation position horizontal or vertical
*Technical changes reserved | Images may vary
