Caleffi Dirtmag sludge separator

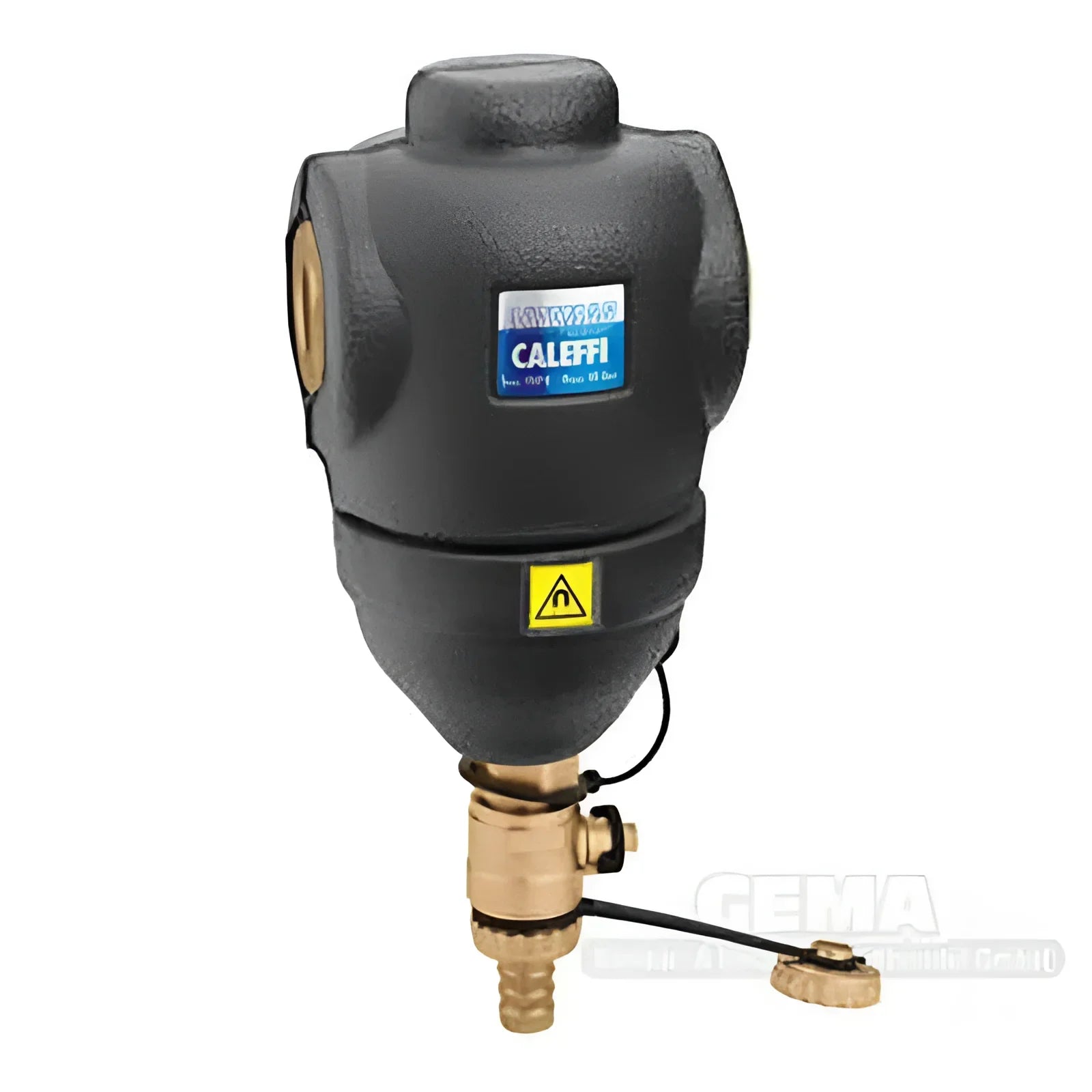

Caleffi DIRTMAG dirt separator
The Caleffi DIRTMAG dirt separator separates contaminants, primarily consisting of sand and sludge particles, with minimal pressure losses in closed circuits of systems.
The impurities are collected in a decanting chamber, which, thanks to its large capacity, does not require frequent cleaning and can be emptied even while the system is running.
The series of Caleffi dirt separator DIRTMAG®
also has a removable magnetic ring to separate ferromagnetic impurities.
This versatile Caleffi valve, made specifically for air conditioning systems from a special technopolymer, can be installed in both vertical and horizontal pipes.
Caleffi dirt separator advantages:
- Brass housing - the sludge separator is made of brass specifically for heating and cooling circuits
- Low pressure losses and constant long-term operation
- Efficient and quick cleaning thanks to the removable magnetic ring on the decanting chamber
- The insulation provides perfect protection against cold or heat loss
- Also available without insulation
- Particle separation performance up to 0.005 mm
Caleffi sludge separator technical data:
- Connection inch ¾" (standard)
- Operating media: water, glycol solutions
- Max. glycol content 50%
- Max. operating pressure 10 bar
- Operating temperature range 0 - 110 °C
- Magnetic induction ring system 2 x 0.3 T
- Connection dimension DN 20
- Flow coefficient Kv (m3/h) DN20 16.2/DN25 28.1/DN32 48.8/DN40 63.2/DN50 70.0
- Housing material: brass EN 1982 CB753S
- Material collection chamber brass EN 12165 CW617N
- Material upper closure brass EN 12164 CW617N
- Material inner element PA66G30
- Material Hydraulic Seals EPDM
- Material drain valve brass EN 12165 CW617N
Caleffi DIRTMAG dirt separator
*Technical changes reserved | Images may vary
